Installation Of ClearOS 6.3.0 With Screenshots
Boot the Computer with ClearOS 6.3.0 Installation CD/DVD or ISO.

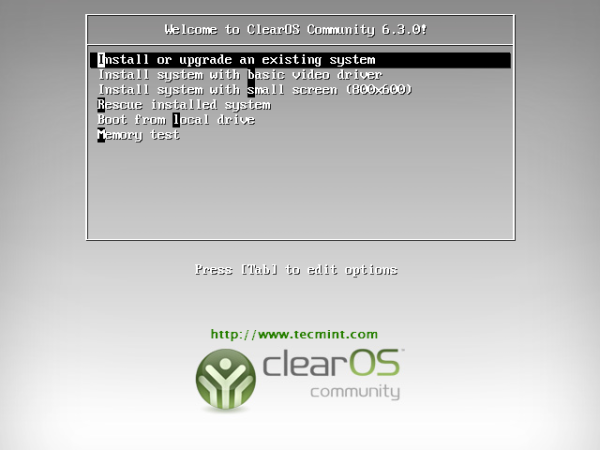

1. Select Install or upgrade ClearOS 6.3.0
ClearOS 6.3 Install or Upgrade

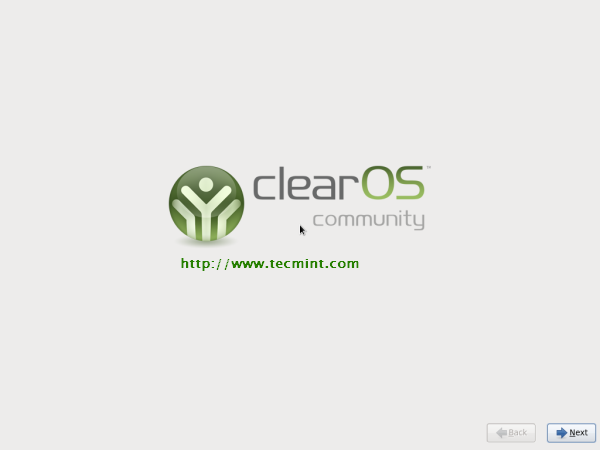

2. Welcome screen of ClearOS 6.3.0
ClearOS 6.3 Welcome Screen

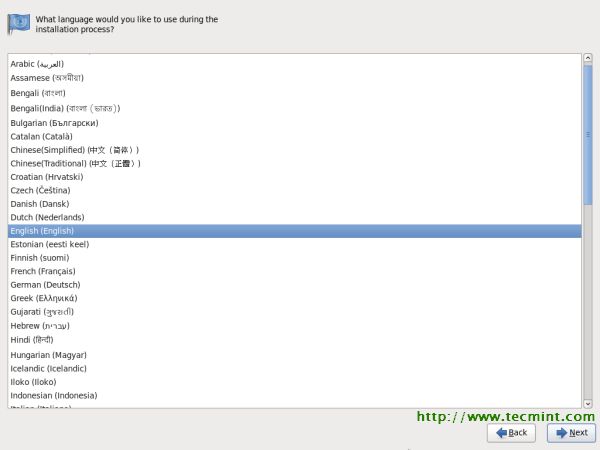

3. Language selection.
ClearOS 6.3 Language Selection

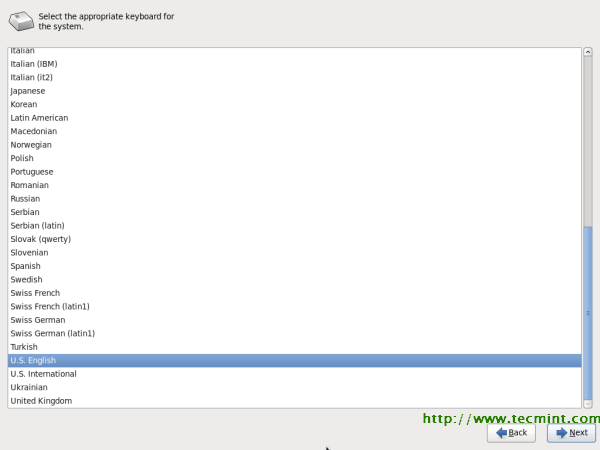

4. Keyboard selection.
ClearOS 6.3 Keyboard Selection

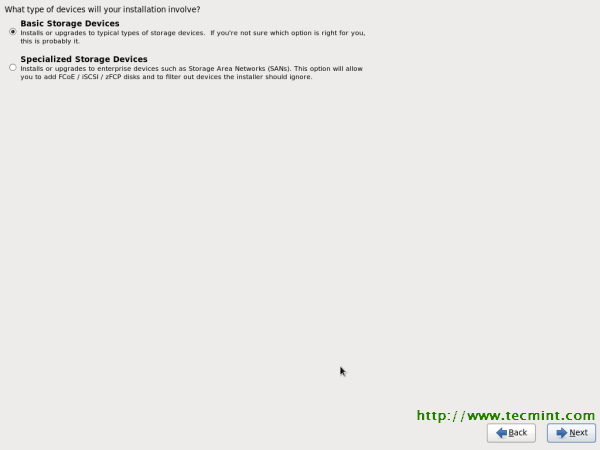

5. Select Basic Storage device, if your hard drive is locally attached.
ClearOS 6.3 Basic Storage Selection

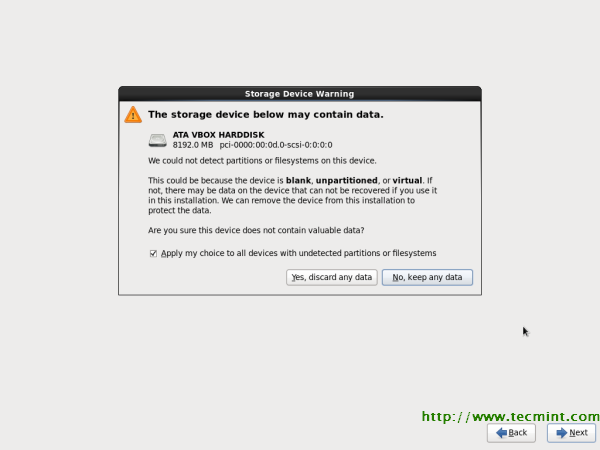

6. Storage Device Warning, Click yes, discard any data.
ClearOS 6.3 Device Warnings

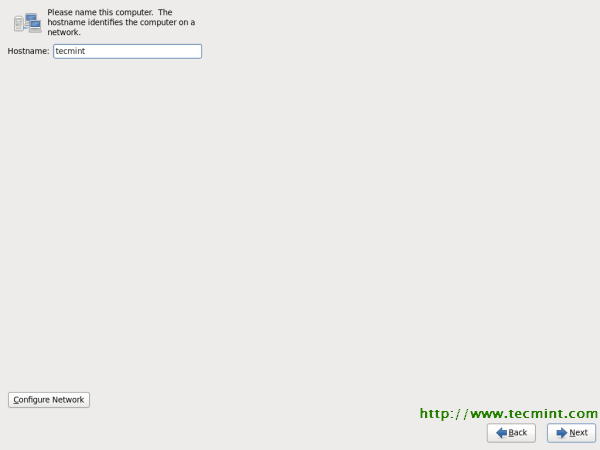

7. Give a Name to your system. You may Click on Configure Networkbutton if you want to configure Network during installation.
ClearOS 6.3 Hostname Setup
Note: Click Wired tab and click on add button. Select Connect automatically, go to ipv4 settings tab and select Method and selectManual in drop down. Fill address box with IP Address, Netmask & Gateway. In this howto’s I’m using IP Address 192.168.50.20 for this system. The IP Address may differ in your environment.

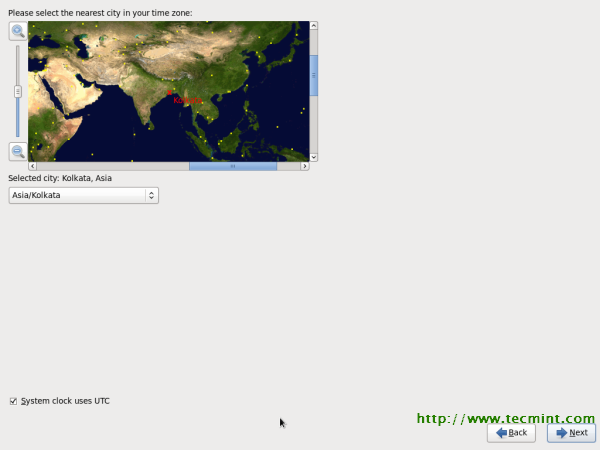

8. Select nearest city in your time zone.
ClearOS 6.3 Time Zone Selection

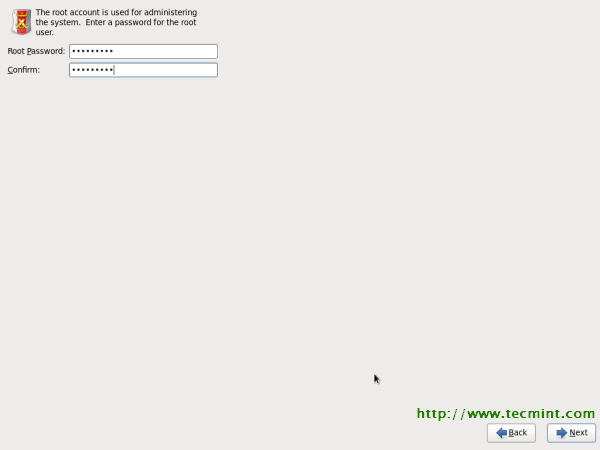

9. Enter root password.
ClearOS 6.3 Set Root Password

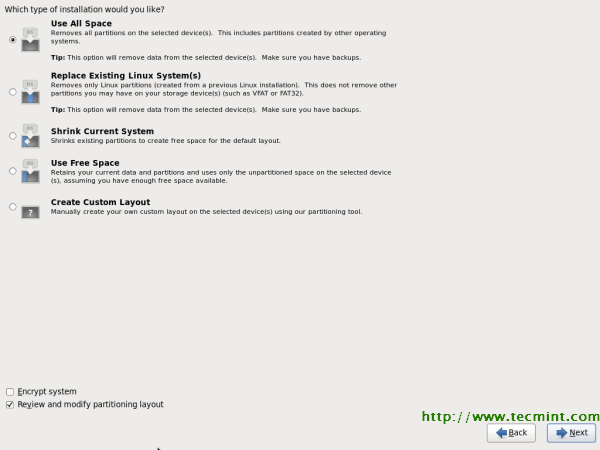

10. Select Partition types as per your need.
ClearOS 6.3 Partition Selection

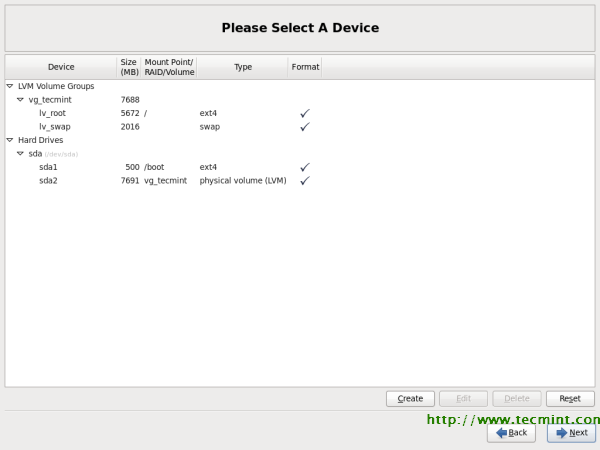

11. Verify Partitions or you can edit filesystem partition If you like.
ClearOS 6.3 Verify Partition

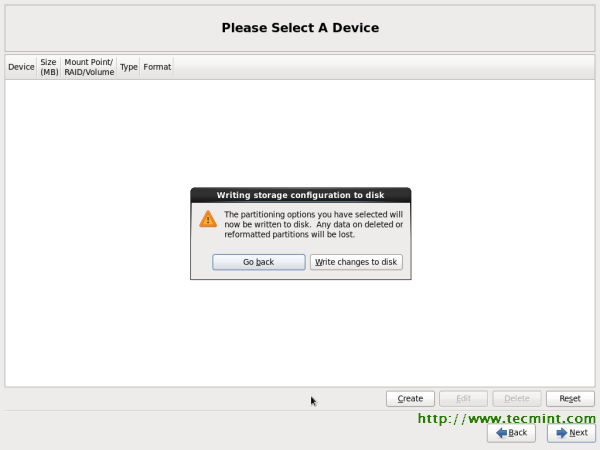

12. Select Write changes to Disk.
ClearOS 6.3 Disk Write Changes

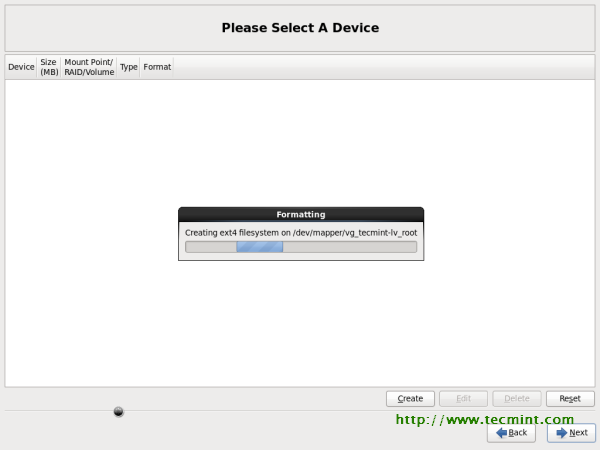

13. Filesystem formatting.
ClearOS 6.3 File System Formatting

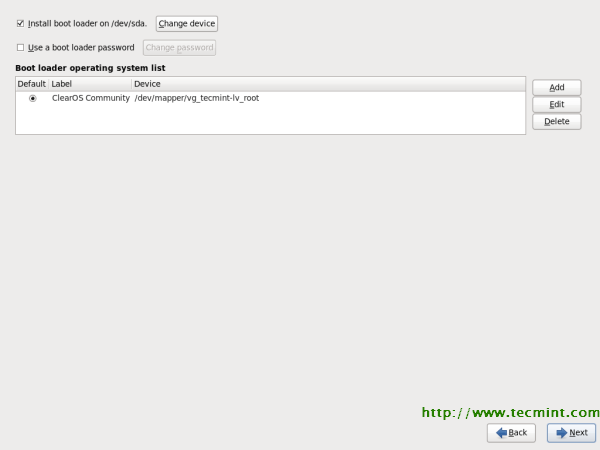

14. Bootloader options. You can give bootloader password to enhance security.
ClearOS 6.3 Boot Loader Selection

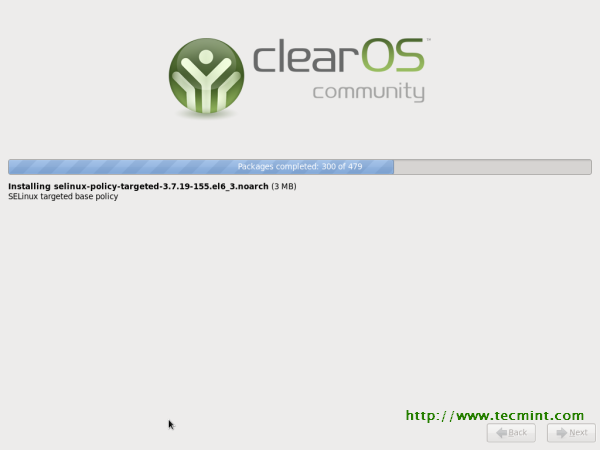

15. Installation started, this may take several minutes.
ClearOS 6.3 Installation Started

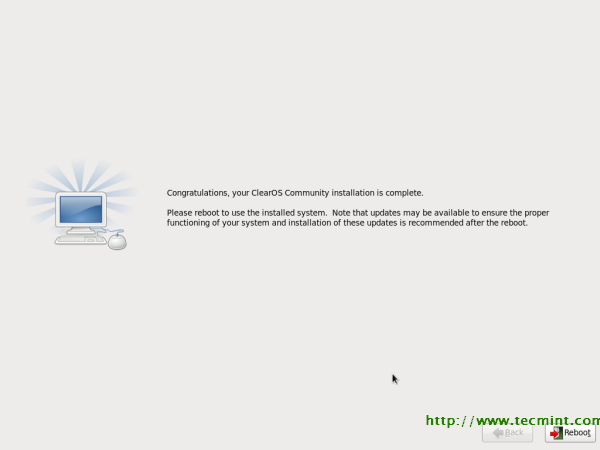

16. Installation completed, Please remove CD/DVD and reboot system.
ClearOS 6.3 Installation Completes

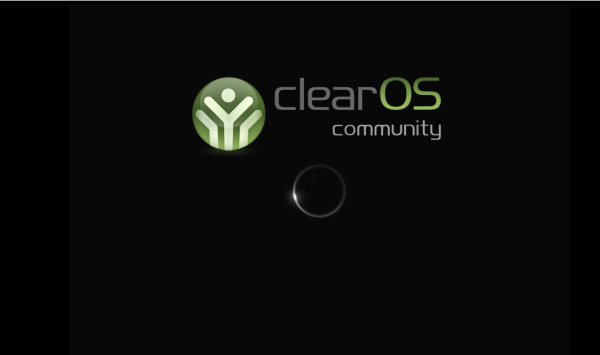

17. After reboot, First screen of Clear OS.
ClearOS 6.3 Reboot Screen

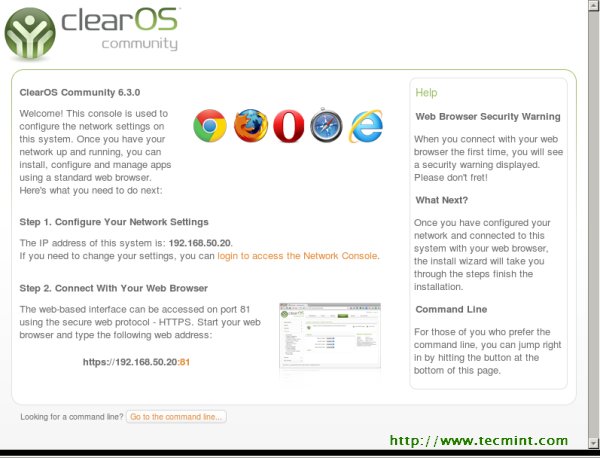

18. Post installation, you will get below screen where we can use browser to configure ClearOS 6.3.0 using URL to connect web interface (https://192.168.50.20:81).
ClearOS 6.3 Post Installation Screen

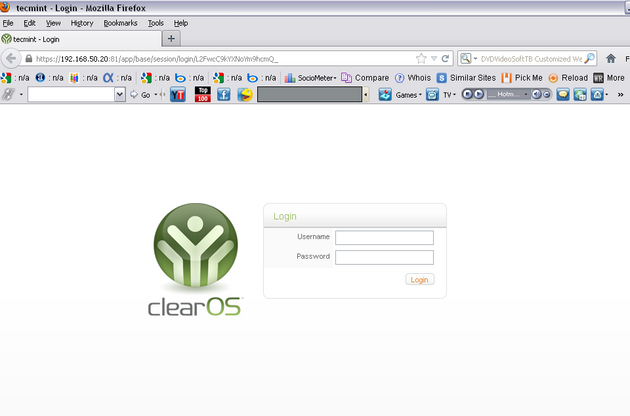

19. Open ClearOS Web Interface in a browser with root user andpassword for initial configuration.
ClearOS 6.3 Web Interface
20. Installation Wizard will come up and follow the instructions as it says.
ClearOS 6.3 Installation Wizard

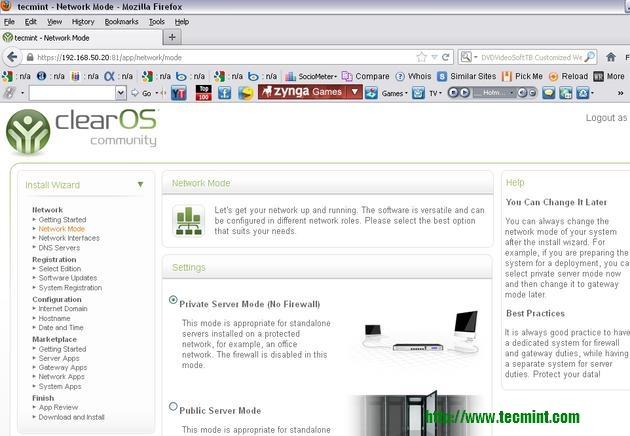

21. Select modes, Private Server Mode (for local network) is appropriate for this scenario (Without firewall)
ClearOS 6.3 Select Modes

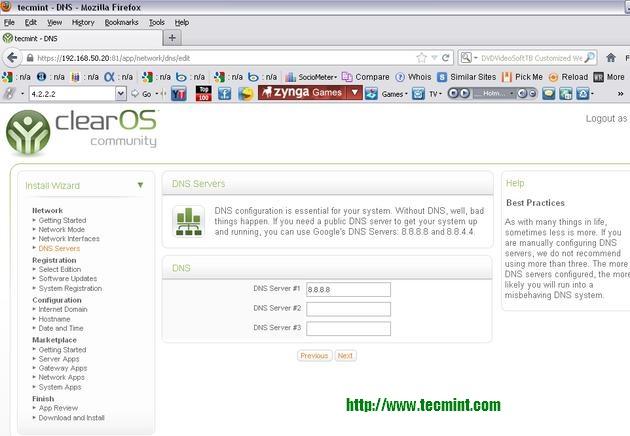

22. Next two steps is for Network Setting, you can edit Network Settingshere if you want.
ClearOS 6.3 Network Settings
ClearOS 6.3 Network Configuration

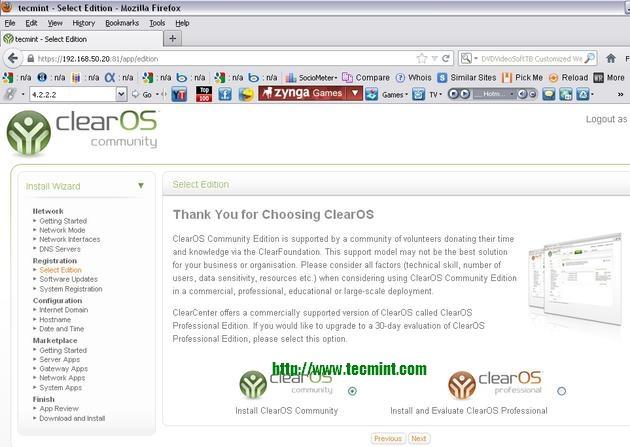

23. Select ClearOS Community Edition or ClearOS Professional. VisitClearOS Website to know more about differences.
Select ClearOS 6.3 Community Edition

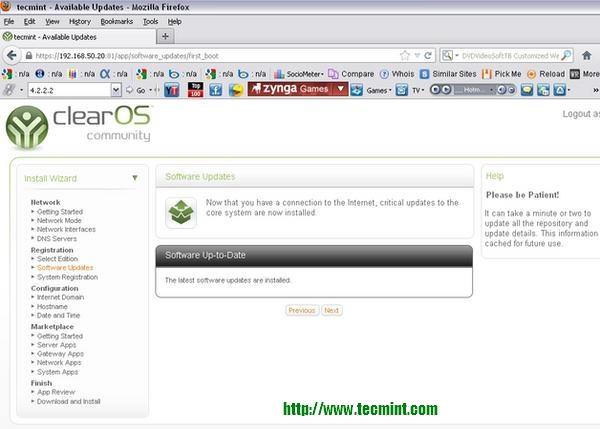

24. Next step for software updates if any
ClearOS 6.3 Software Updates
